Tulsa I-244 Pedestrian Bridge: MSE Formliner Patterns

Tulsa Blog 9

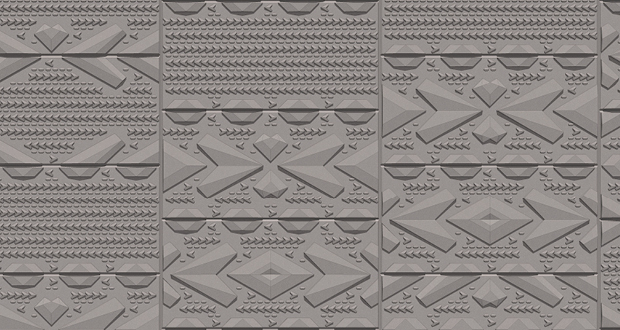

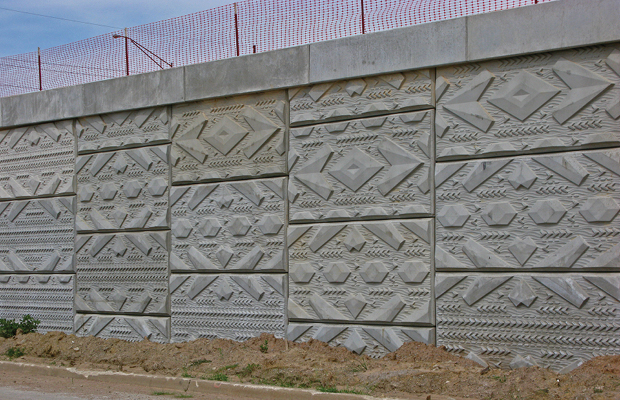

The pedestrian bridge crossing the Arkansas River in Tulsa has a series of concrete retaining walls associated with it. These walls are made of MSE precast panels. These panels can have surface relief patterns cast into them to provide a level of interest to an otherwise monolithic wall. The modular system allows for the exploration of pattern, rhythm and texture. This is a simple and effective way to improve a concrete wall and enhance a site.

Tulsa Blog 10

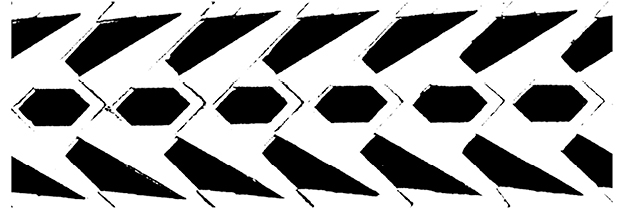

Tulsa has a deep Art Deco history and we used this as an inspiration to tie all the aspect of the project together. The same source pattern motif influenced the cut metal patterns, the handrail brackets, the striping dashes, and the concrete pattern panels.

Tulsa Blog 12

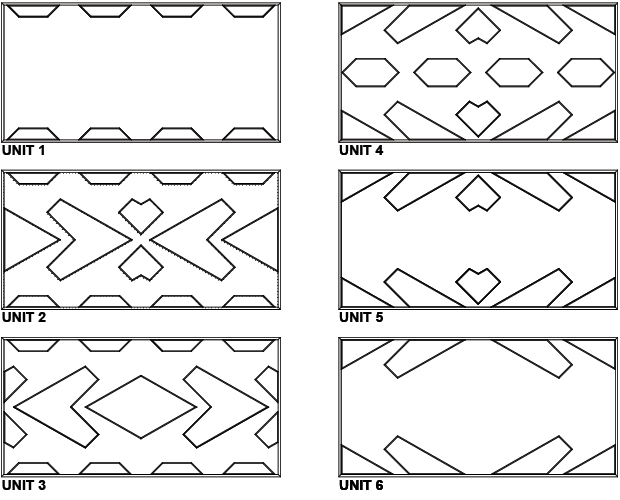

Through a process of exploration, we transformed the source pattern into a system of pattern units that, while different, share the same language and work together. We mirrored, shifted and edited the source pattern to generate the new patterns. Mindful of the way the units would be placed next to each other, in a staggered grid, we ensured that each unit would flow onto and connect to all the other units. We also made sure that there was a variety of pattern density, from an almost blank unit, to more and more full patterns. This allows for more interesting patterns to emerge when the units are placed together.

Tulsa Blog 11

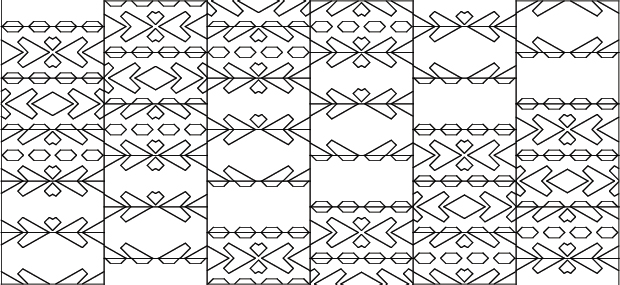

We laid out patterns to gain and understanding of how the units work together. We generated patterns that emphasize rhythm and texture. This adds visual interest. A pattern that moves and changes is more interesting that a static expression.

Tulsa Blog 13

Team Credits:

Vicki Scuri SiteWorks

Alexandr Polzin
